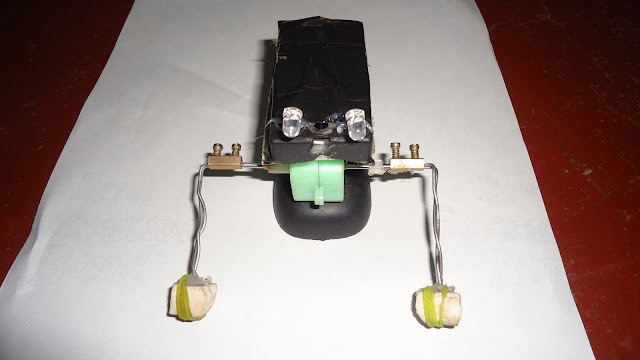

Somersault Robot
THIS ROBOT IS COMPLETELY CONSTRUCTED IN HOME.
IT HAS LIGHTING EYES, CRAWLING FEATURE AND ATTRACTIVE BODY.
THIS IS A ROBOT WHICH IS COMPLETELY CONSTRUCTED AT HOME. YOU CAN ALSO CONSTRUCT.
FOLLOW THE INSTRUCTIONS-
MATERIALS REQUIRED-
GEAR MOTOR DOUBLE SHAFT
ERASER
4) TAKE A ERASER AND CUT IT INTO 2 PIECES AND GLUE TI AT THE END OF THE WIRE.
5) ATTACH THE ONE WIRE OF THE MOTOR TO A SWITCH AND ANOTHER DIRECTLY TO THE 9 VOLT BATTERY AND ANOTHER WIRE FROM SWITCH.
(TO UNDERSTAND MORE CLEARLY HERE IS THE CIRCUIT DIAGRAM.)-
YOU MAY LATER
6) STICK THE SWITCH AT THE BACK SIDE OF THE HOLDER.
7) ARRANGE THE BATTERY AT THE BOTTOM OF THE HOLDER.
8) TEST IT.ENJOY IT!!!.
OPTIONAL-
YOU CAN GIVE BEAUTY TO YOUR ROBOT BY ADDING TWO EYES.
IT HAS LIGHTING EYES, CRAWLING FEATURE AND ATTRACTIVE BODY.
THIS IS A ROBOT WHICH IS COMPLETELY CONSTRUCTED AT HOME. YOU CAN ALSO CONSTRUCT.
FOLLOW THE INSTRUCTIONS-
MATERIALS REQUIRED-
GEAR MOTOR DOUBLE SHAFT
BATTERY HOLDER - AA
STEEL WIRE - 1/2 METER
HOT GLUE GUN (OPTIONAL)OR OTHER GLUE
SIMPLE ON-OFF SWITCH
9 VOLT BATTERY
BLOCK CONNECTORS
PAPER CLIP
BATTERY CLIP
OPTIONAL- YOU CAN DECORATE YOUR ROBOT BY APPLYING 2 RED EYES.

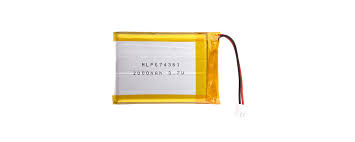

LI POLY BATTERY (OPTIONAL)
2 RED LEDS (OPTIONAL)
SMALL BLACK BOX SAME AS AA BATTERY HOLDER (OPTIONAL)
PROCEDURE-
1) FIX THE GEAR MOTOR ON THE TOP OF THE AA BATTERY HOLDER.
2) TAKE 1/2 METER STEEL WIRE AND CUT IT INTO HALF AND BEND EACH OF THEN INTO HALF , TILL EACH OF THEM ROUGHLY EACH MEASURES 7-9 CM.
3) TAKE SOME BLOCK CONNECTOR AND CONNECT IT TO STEEL WIRE AS SHOWN .
5) ATTACH THE ONE WIRE OF THE MOTOR TO A SWITCH AND ANOTHER DIRECTLY TO THE 9 VOLT BATTERY AND ANOTHER WIRE FROM SWITCH.
(TO UNDERSTAND MORE CLEARLY HERE IS THE CIRCUIT DIAGRAM.)-
YOU MAY LATER
6) STICK THE SWITCH AT THE BACK SIDE OF THE HOLDER.
7) ARRANGE THE BATTERY AT THE BOTTOM OF THE HOLDER.
8) TEST IT.ENJOY IT!!!.
OPTIONAL-
YOU CAN GIVE BEAUTY TO YOUR ROBOT BY ADDING TWO EYES.
THIS ROBOT IS CREATED BY ME-
